Fixings- allen key required- as latest comments
Gland required for penetration of cable into unit
Scrating of cill during installation- TEK to resolve setting out/ sizing/ packing of cill and units accordingly
back of cill in incorrect position
Cill not as CVA detail
Acoustic insulation- TEK to forward thermal value
PPC poor finish to external grilles- TEK to advise/ address
Alignment to cill tray and unit to be addressed
Assembly Hall
Relief pattern brickwork GL Q/14 with Ibstock special now installed
187mm solids not aligned (impinging on cavity on left hand side)- to be relaid- Hutton to address
Cavity less than 50mm- Hutton to address
Assembly Hall North Elevation overview
GL Q/14 overview with wrapping relief pattern
Along GL K to plinth brickwork
Hole in DPC forming cavity tray GL K/20 corner 1st floor- to be addressed
Screed too high AS.ED.00.02- HUT to amend levels/ openings for NACO grilles if maintained
Lightning protection to plinth brickwork
DGT gutter remedials underway

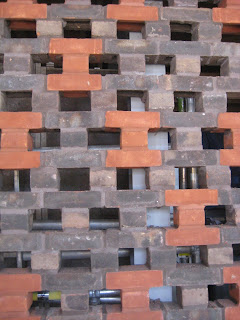

CVA to instruct painting of windposts behind hit and miss brickwork to plinth/ plant
Otway House
HUT to order different sand for final mortar samples Otway
Ditto
HRW to advise regarding steel conflict to assembly link
Adjacent Otway awaiting link steelwork
Classroom Block
CVA to instruct airbricks to ventilate sealed cavities
CVA to instruct timber stud to form internal lining
HUT to forward remedial proposals for discrepancies in screed- Stair 2 GFL
Window heads incorrect to corridor windows (only required to deep reveals)
1st fix electrical Praes
Brickwork not protected prior to cutting of Ringbeam/ remedials- Hutton to advise regarding cleaning
Awaiting link steels
Classroom rooflights delivered
Classroom courtyard overview
Classroom roof steelwork overview
Chimney steelwork
Roof steelwork above lift shaft
Classroom brick overview- Ingrave Road
2nd floor corridor
Big chimney ringbeam- insulation/ vertical DPC required- CVA to instruct
Conflict between revised ringbeam and roof plane- HRW to advise. CVA marked up cut away required on site
Ditto
Pattern chimney brickwork- C.06-7
Marking out on facing brickwork- HUT to address
Packing out of door linings excessive- HUT to address
